Description

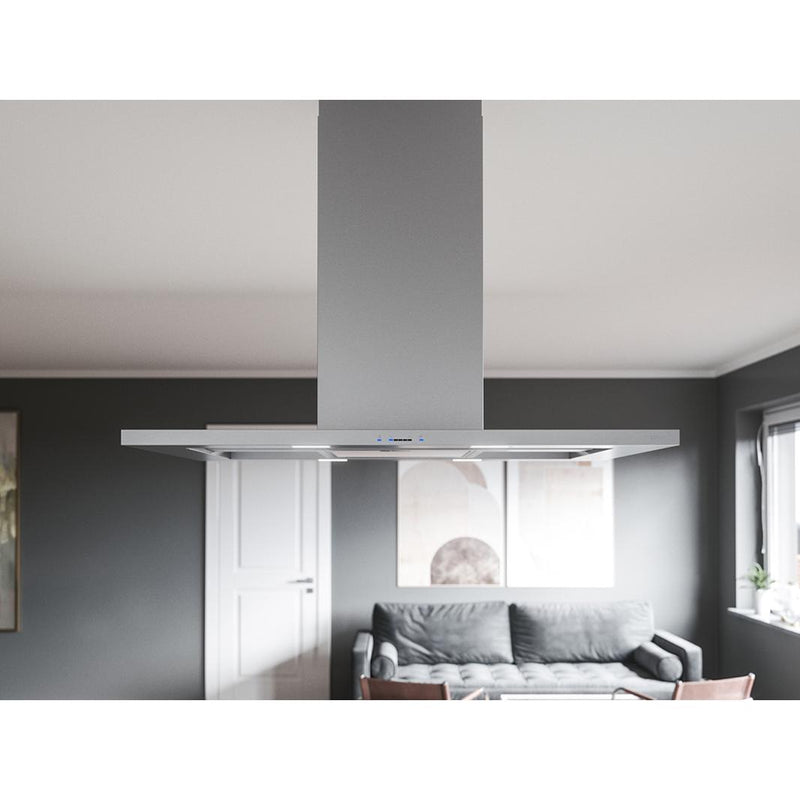

Resembling a floating island made of steel and glass, Zephyr's Modena houses LumiLight LED lighting and 5-speed ICON Touch® controls within its one-inch stainless steel canopy. Nestled discreetly between the chimney and its outer ring, Modena’s glass canopy adds a sense of lightness and augments the range hood’s symmetry and low-profile design.
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ICON TOUCH™ CONTROLS
Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
DELAY OFF
This feature is used for programmed shut down of blowers 15 minutes after the function is activated. Press once, a
dot flashes in the lower right side of display indicating the function is on. The blowers will shut down after 15
minutes.
Specifications
General
Series Name
Modena
Blower Included
Yes
Airflow
600 CFM
Style
Island
Color
Stainless Steel
Manufacturer Color
Stainless Steel with Glass
Installation
Island
Features
Dishwasher-Proof Filters
Yes
Technologies
• Airflow Control Technology™
• ICON Touch® Controls
• ICON Touch® Controls
Ducting Information
8" Round - Vertical
Speeds
5
Additional Information
• Auto delay-off
• Sones (Min. - Max.): 1 - 6
• Lighting: LumiLight LED, 6W x4
• Dual-level lighting
• 1 Aluminum mesh filter
• Recirculating option
• Quick-Lock installation
• Magnetic duct covers
• Sones (Min. - Max.): 1 - 6
• Lighting: LumiLight LED, 6W x4
• Dual-level lighting
• 1 Aluminum mesh filter
• Recirculating option
• Quick-Lock installation
• Magnetic duct covers
Electrical Information
Information
120V, 60Hz at Max. 4A
Accessories
Optional
• Recirculating kit: ZRC-00MD
• Extension duct cover: Z1C-00MD
• Make-up air kit: MUA006A
• Extension duct cover: Z1C-00MD
• Make-up air kit: MUA006A
Dimensions
Class Width
42"
Width
41.94 inch(es) / 106.52 cm
Height
28 inch(es) / 71.12 cm
Depth
27.5 inch(es) / 69.85 cm
Additional Dimensions
Mounting height range: 24" - 34"
Warranty
Warranty
• 1-Year limited warranty on labor only
• 3-Year limited warranty on none-consumable parts
• 3-Year limited warranty on none-consumable parts
