Description

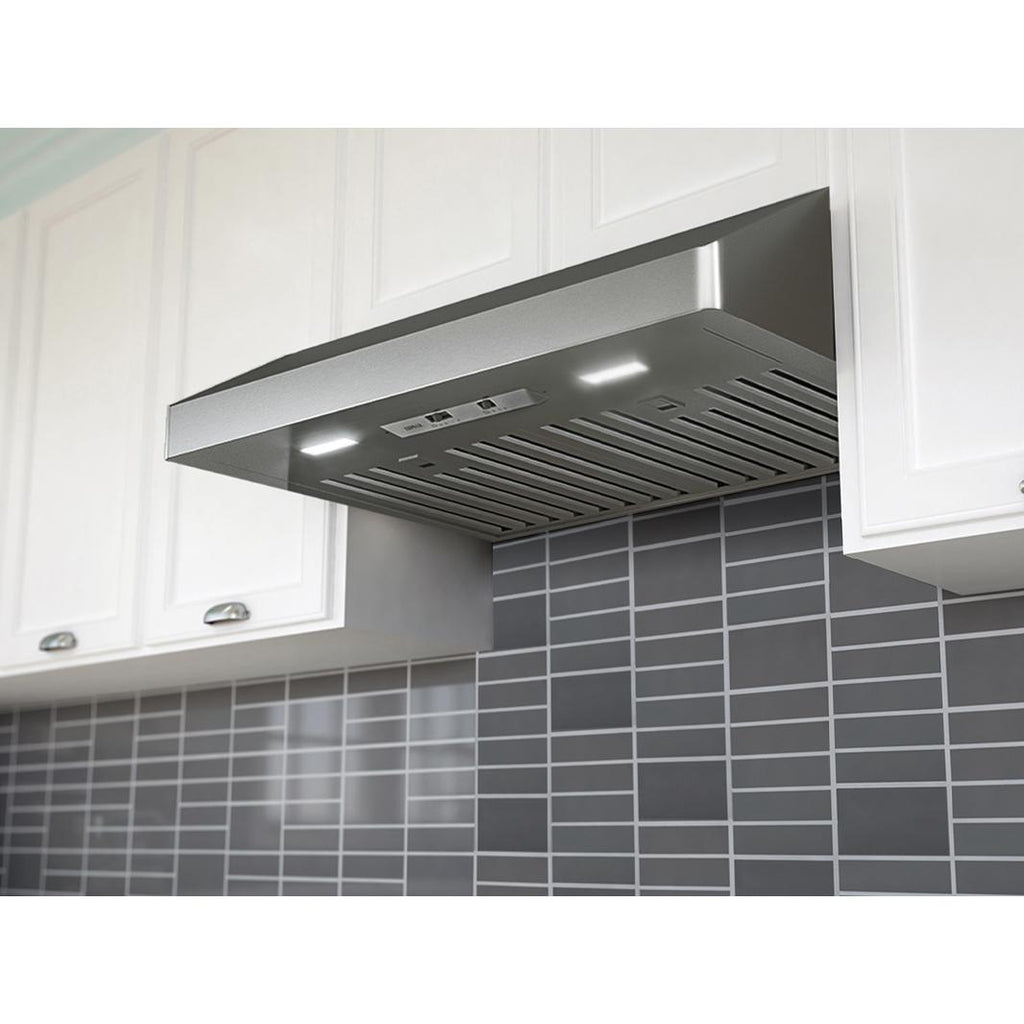

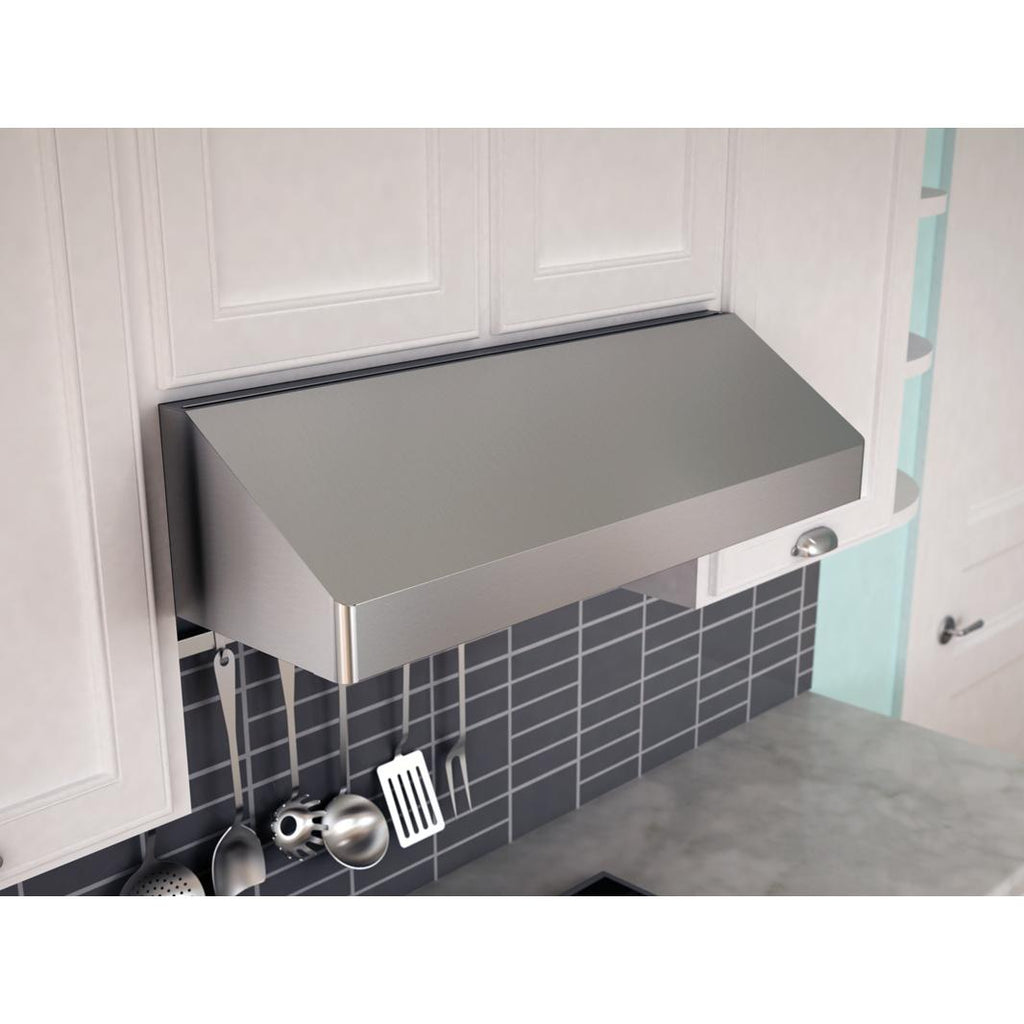

A discreet, European-style, professional-looking range hood, Gust adds fashion to under-cabinet installations. With its mechanical controls neatly tucked away below the canopy, Gust provides the subtlety its owners require. Its perfectly curved corners and understated top-mounted return-air louver offer further evidence that Gust spares nothing when it comes to quality construction.
Specifications
General
Series Name
• Core Collection
• Gust
• Gust
Blower Included
Yes
Airflow
290 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• Vertical: 7" Round or 3-1/4" x 10"
• Horizontal: 3-1/4" x 10"
• Horizontal: 3-1/4" x 10"
Speeds
3
Additional Information
• Mechanical slide controls
• Sones (Min. - Max.): 1.1 - 3.2
• Auto delay-off
• Lighting: LumiLight LED, 6W x2
• Dual-level lighting
• 2 Pro baffle filters
• Sones (Min. - Max.): 1.1 - 3.2
• Auto delay-off
• Lighting: LumiLight LED, 6W x2
• Dual-level lighting
• 2 Pro baffle filters
Electrical Information
Information
120V, 60Hz at Max. 1.7A
Certifications and Approvals
Hvi Certified
No
Energy Star Certified
No
Accessories
Optional
• Recirculating kit: ZRC-0071
• Make-up air kit: MUA006A
• Damper, 7" round: AK00067
• Make-up air kit: MUA006A
• Damper, 7" round: AK00067
Dimensions
Class Width
36"
Width
35.94 inch(es) / 91.28 cm
Height
7.15 inch(es) / 18.16 cm
Depth
21 inch(es) / 53.34 cm
Additional Dimensions
Mounting height range: 24" - 32"
Warranty
Warranty
• 1-Year limited warranty on labor only
• 3-Year limited warranty on none-consumable parts
• 3-Year limited warranty on none-consumable parts
