Description
This Frigidaire Gallery 27" single electric wall oven features quick preheat, true convection, power broil, one-touch options, steam cleaning, even bake technology and one-touch keep warm setting. It also offers add-a-minute to the oven timer, a delay start, ADA compliance, the Effortless™ convection, a SpaceWise® half rack and Express-Select® controls.
Features
TRUE CONVECTION
Single convection fan circulates hot air throughout the oven for faster and more even multi-rack baking.
ONE-TOUCH KEEP WARM SETTING
Just one touch of a button keeps food warm until everything — and everyone — is ready
EFFORTLESS™ CONVECTION
Takes the guesswork out of convection cooking — oven automatically adjusts standard baking temperatures to convection temperatures for consistent results.
EVEN BAKING TECHNOLOGY
Even Baking Technology ensures even baking every time.
POWER BROIL
Added power means you can broil food faster.
STEAM CLEANING
A light oven cleaning that's chemical-free, odor-free, and fast.

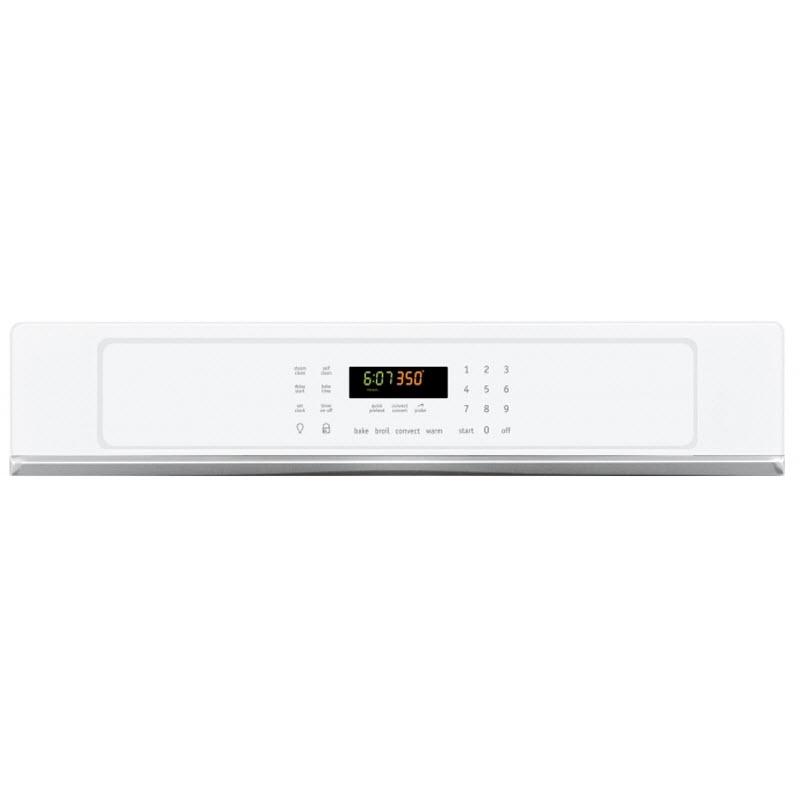

EXPRESS-SELECT® CONTROLS
Easily set cooking temperature or choose one-touch cooking options.
Specifications
General
Fuel Type
Electric
Color
White
Manufacturer Color
White on White
Total Capacity
3.8 cu. ft.
Main Oven Capacity
3.8 cu. ft.
Oven Specifications
Technologies
• Effortless™ convection
• Even baking technology
• Express-Select® controls
• True convection
• Even baking technology
• Express-Select® controls
• True convection
Programs
• Bake
• Broil (400 - 550 °F)
• Quick preheat
• keep warm
• Delay start
• Broil (400 - 550 °F)
• Quick preheat
• keep warm
• Delay start
Clock
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Extra large window
• Power broil
• Delay self-clean with steam clean option: 2, 3, 4 hours
• Delay start from 1 to 24 hours
• Temperature probe
• Oven bake: 1,450 W
• Oven baking system: true hidden bake
• Oven broil : 6 pass 3,400 W
• Oven convection: 2,500 W
• Oven interior lighting: 2 halogen
• Oven cleaning system: self-clean with steam clean option
• Approved for under-counter installation
• Power broil
• Delay self-clean with steam clean option: 2, 3, 4 hours
• Delay start from 1 to 24 hours
• Temperature probe
• Oven bake: 1,450 W
• Oven baking system: true hidden bake
• Oven broil : 6 pass 3,400 W
• Oven convection: 2,500 W
• Oven interior lighting: 2 halogen
• Oven cleaning system: self-clean with steam clean option
• Approved for under-counter installation
Drawer
Baking
No
Broiler
No
Storage
No
Keep-Warm
No
Certifications
Certifications
• A.D.A. compliant
• Sabbath mode (Star-K® certified)
• Sabbath mode (Star-K® certified)
Electrical Information
Information
• 240V/208V
• 60Hz
• 20A
• 60Hz
• 20A
Accessories
Optional
• 3"-high bottom trim: 318903506
• 10'-long armored power cable: 903056-9010
• 10'-long armored power cable: 903056-9010
Dimensions
Class Width
27"
Width
27 inch(es) / 68.58 cm
Height
29 inch(es) / 73.66 cm
Depth
24.75 inch(es) / 62.87 cm
Additional Dimensions
• Depth with door open 90: 45-3/"
• Cut-out height: 27-1/4" - 28-5/8"
• Cut-out width: 24-7/8" - 25-1/4"
• Cut-out depth: 23-1/2"
• Oven interior height: 17"
• Oven interior width: 20-1/2"
• Oven interior depth: 18-3/4"
• Cut-out height: 27-1/4" - 28-5/8"
• Cut-out width: 24-7/8" - 25-1/4"
• Cut-out depth: 23-1/2"
• Oven interior height: 17"
• Oven interior width: 20-1/2"
• Oven interior depth: 18-3/4"
Shipping Dimensions
Weight
145.99 lb(s) / 66.22 kg
Warranty
Warranty
Limited 1 year warranty parts and labor
UPC
UPC#
012505800726
